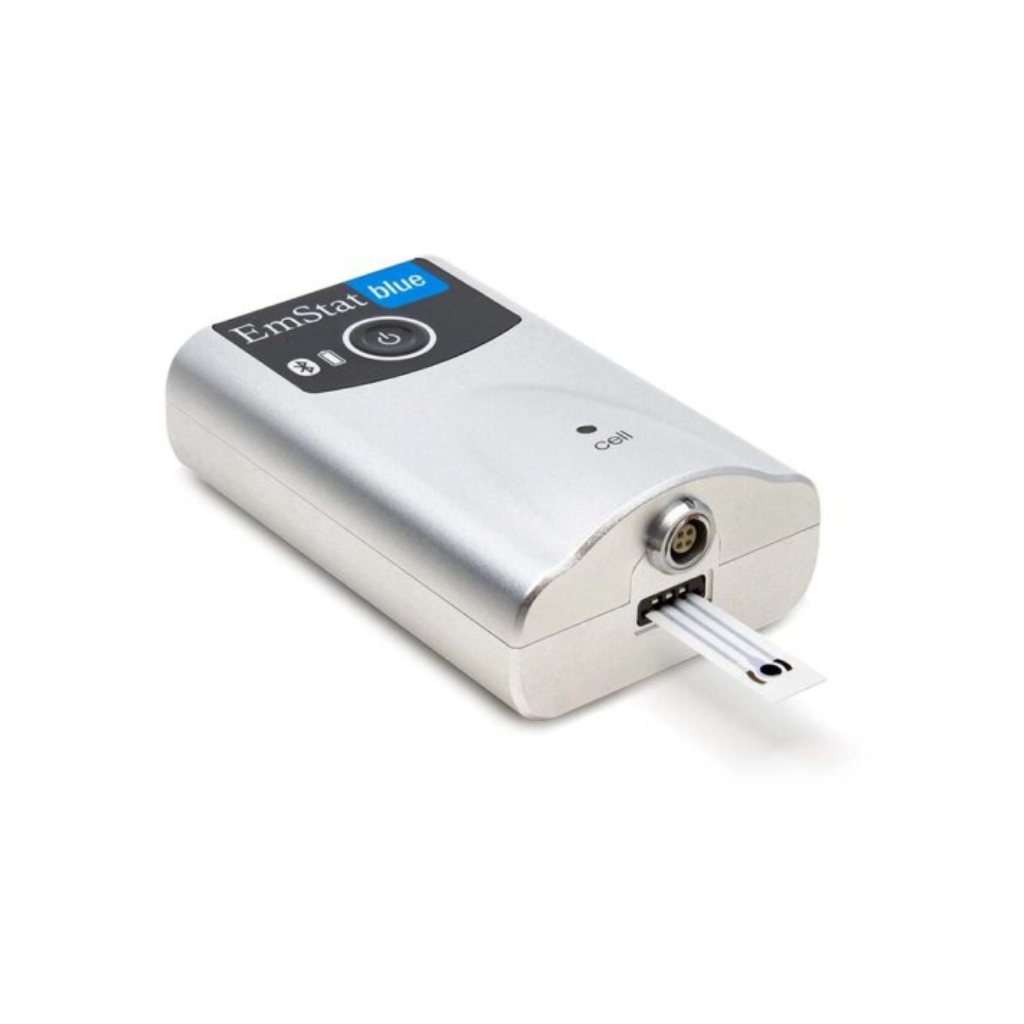

EmStat Blue
Description & Specification
EmStat Blue is a small and low cost potentiostat with research grade capabilities. It has eight current ranges from 1 nA to 100 mA (EmStat3+ Blue) full scale, with a minimum resolution of 1 pA. It provides the most relevant electroanalytical measurement techniques and is used with the PSTrace software or with PStouch for Android.
Standard included with an EmStat Blue:
Rugged carrying case
Crocodile clips
Dummy cell
USB cable
PSTrace software for Windows
High quality, double shielded cell cable with 2 mm banana connectors for Working, Counter, Reference electrode and Ground
EmStat Blue version
| 3 | 3+ | |
| dc-potential range | ± 3.000 V | ± 4.000 V |
| compliance voltage | ± 5 V | ± 8 V |
| dc-potential resolution | 0.1 mV | 0.125 mV |
| dc-potential accuracy | 0.2 % | 0.3 % |
| current ranges | 1 nA to 10 mA (8 ranges) | 1 nA to 100 mA (9 ranges) |
| maximum current | ± 20 mA typical ± 15 mA minimum |
± 100 mA typical |
