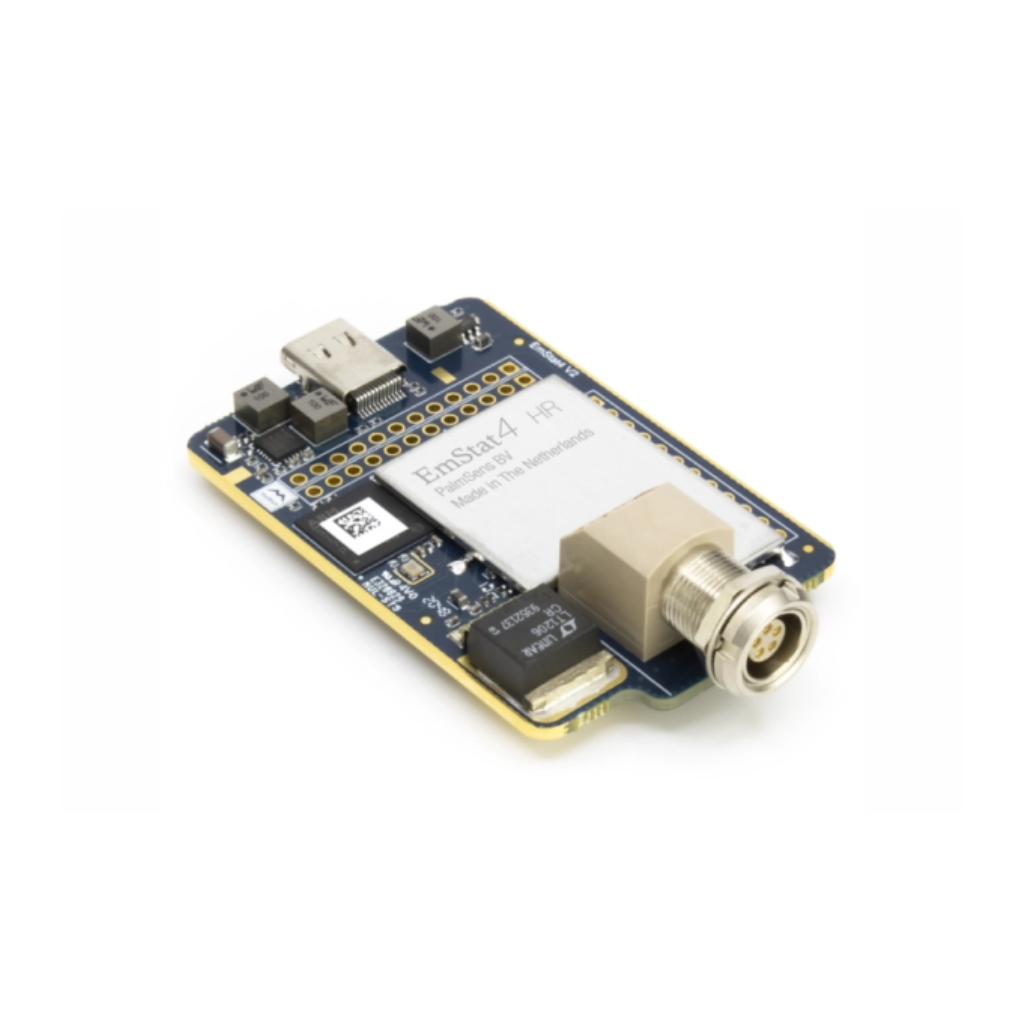

EmStat4M Module
Tested & calibrated potentiostat module
- Desktop performance in the palm of your hand
- Enables rapid prototyping
- Easy to reproduce measurements using MethodSCRIPT™
- Many code examples for different languages and platforms
Description & Specification
The EmStat4M is a potentiostat/galvanostat module supporting all common electrochemical techniques, including Electrochemical Impedance Spectroscopy (EIS). The EmStat4M can be evaluated with our PSTrace software for Windows. You can write your own applications for the EmStat4M module using our .NET libraries or MethodSCRIPT™ and control it from any platform or operating system.
- Low Range (LR): current range from 1 nA to 10 mA (max. 30 mA)
- High Range (HR): current ranges from 100 nA to 100 mA (max. 200 mA)
Main differences between the EmStat4M Low and High Range
| Potential Range | ± 3 V | ± 6 V |
| Max. Compliance Voltage | ± 5 V | ± 8 V |
| Current Ranges | 1 nA to 10 mA (8 ranges) | 100 nA to 100 mA (7 ranges) |
| Max. Current | ± 30 mA | ± 200 mA |
| Electrode Connections | WE, RE, CE, and ground (2 mm banana plugs) | WE, RE, CE, Sense, and ground (2 mm banana plugs) |
| Hardware Options | EIS up to 200 kHz & galvanic isolation available for both | |
