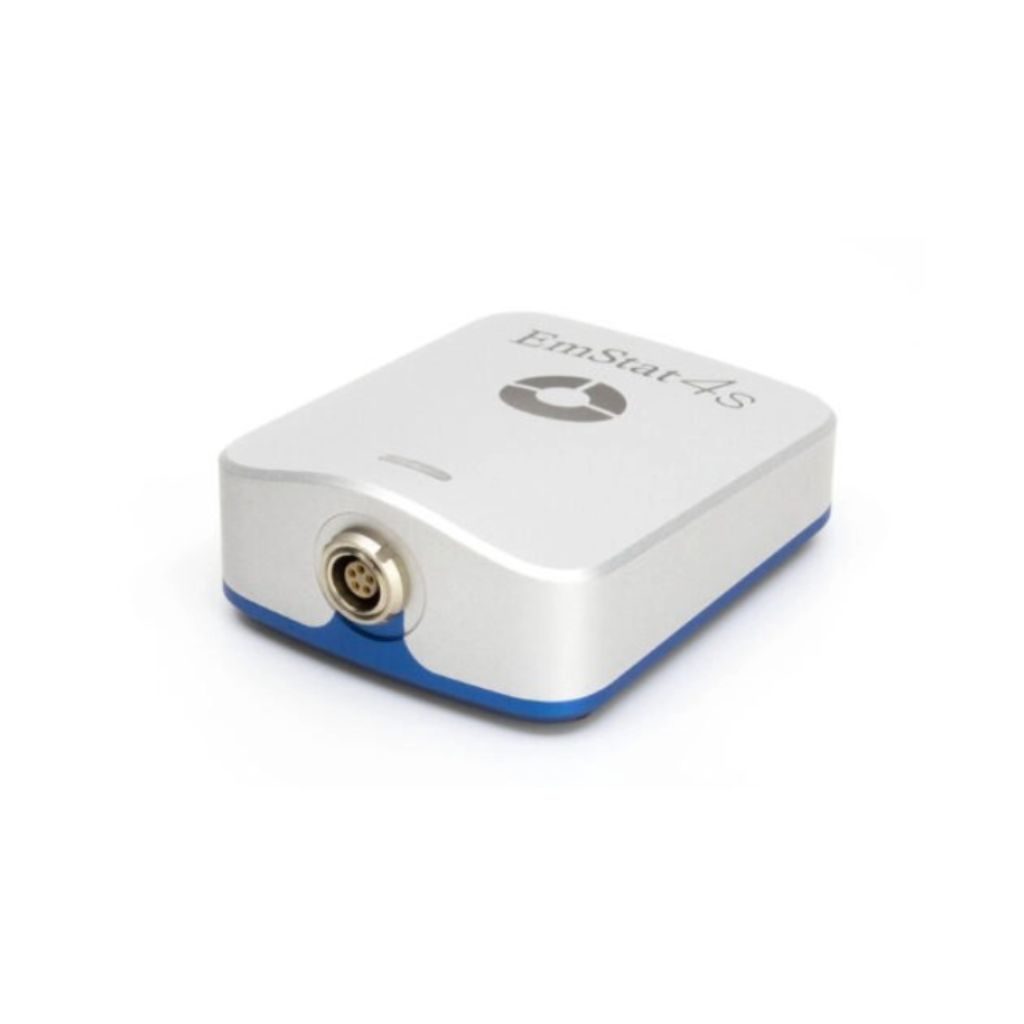

EmStat4S
USB Powered Potentiostat / Galvanostat with EIS
-
- Versions: Low Range and High Range
- Potential Range: ±3 V or ±6 V
- Max. Current: ±30 mA or ±200 mA
- FRA / EIS: 10 μHz up to 200 kHz
Description & Specification
The EmStat4S delivers desktop performance in the palm of your hand. The EmStat4S is a portable USB-powered Potentiostat, Galvanostat, and optional a Frequency Response Analyser (FRA) for Electrochemical Impedance Spectroscopy (EIS).
Versions
The EmStat4S comes in two different versions:
- Low Range: current range from 1 nA to 10 mA (max. 30 mA)
- High Range: current ranges from 100 nA to 100 mA (max. 200 mA)
Main differences between the EmStat4S Low and High Range
| EmStat4S.LR | EmStat4S.HR | |
| Potential range | ±3 V | ±6 V |
| Max. compliance voltage | ±5 V | ±8 V |
| Current ranges | 1 nA to 10 mA (8 ranges) | 100 nA to 100 mA (7 ranges) |
| Max. current | ±30 mA | ±200 mA |
| Electrode connections | WE, RE, CE and ground, 2 mm banana plugs |
WE, RE, CE, Sense, and ground, 2 mm banana plugs |
