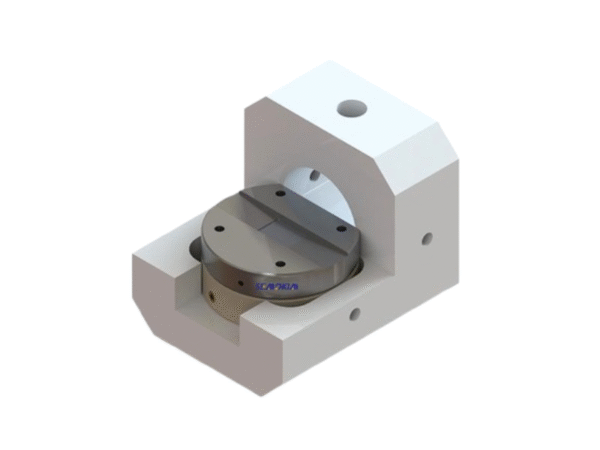

In-Situ Battery XRD Test Cell
In-Situ Battery XRD Test Cell. For In-Situ XRD measuring of battery electrode material
Description & Specification
| In-Situ Battery XRD Test Cell | |
| Model | Model:SEB071 |
| Specification | The cell external dimension Ø52*22.5mm
The window Be sheet specification of Ø24*0.2mm; effective window 12*14mm Available anode and cathode size ≤ Ø16 Each set contains 3 pcs beryllium plate |
| Feature | Applicable to Japan Rigaku XRD mini
For Charging and discharging test of battery It can be used for In-Situ XRD measuring of battery electrode material Full sealed equipment, easy to dismantle and clean Material: Stainless steel(upside)+Peek(bottom) Optional Kapton Window sheet Customized Lithium-Air XRD In-Situ cell is available |
