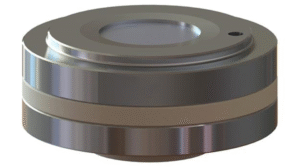

In-Situ Battery XRD Test Cell
In-Situ Battery XRD Test Cell. Applicable to Bruker D2 X ray diffractometer
Description & Specification
| In-Situ Battery XRD Test Cell | |
| Model | Model:SEB069 |
| Specification | The cell external dimension Ø50*19mm/23mm
The window Be panel specification Ø24*0.2mm; effective window Ø20mm Available anode and cathode size ≤ Ø16 Each set contains 3 pcs beryllium plate |
| Feature | Applicable to Bruker D2 X ray diffractometer
For Charging and discharging test of battery It can be used for In-Situ XRD measuring of battery electrode material Full sealed equipment, easy to dismantle and clean Material: Stainless steel(upside)+Peek(bottom) Optional Kapton Window plate Customized Lithium-Air In-Situ XRD cell is available |
