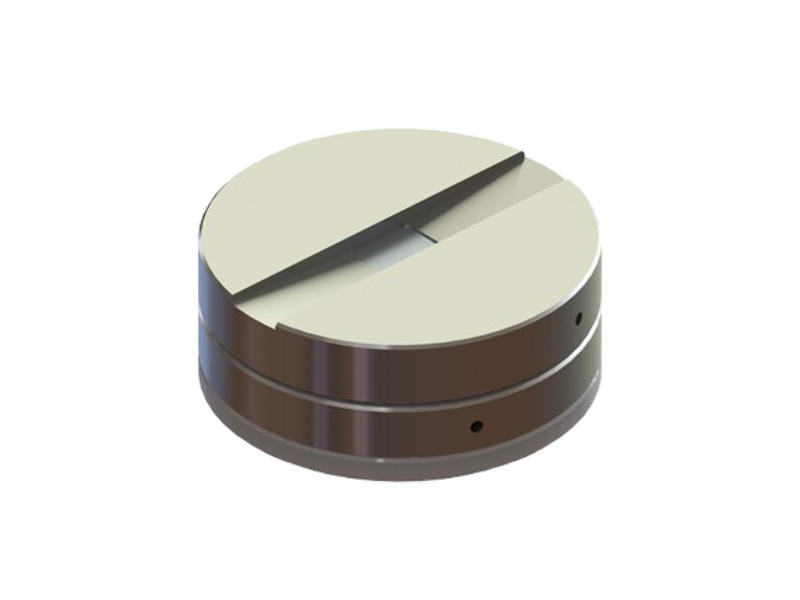

In-Situ Battery XRD Test Cell
In-Situ Battery XRD Test Cell. For 2-electrode (Applicable to Japan Rigaku XRD). It can be used for In-Situ XRD measuring of battery electrode material
Description & Specification
| In-Situ Battery XRD Test Cell | |
| Model | Model:SEB068 |
| Specification | The cell external dimension Ø60*21mm, +insulated base, total Ø60*26.2mm
The window is with Be panel, specification of Ø24*0.2mm; effective window of 14*12mm Available anode and cathode sizes ≤ Ø16 Each set contains 2 sets polyimide plate+3 sets beryllium plate |
| Feature | For 2-electrode (Applicable to Japan Rigaku XRD)
For Charging and discharging test of battery It can be used for In-Situ XRD measuring of battery electrode material Full sealed equipment, easy to dismantle and clean Material: Stainless steel+Peek Optional Kapton Window plate Customized Lithium-Air In-Situ XRD cell is available |
