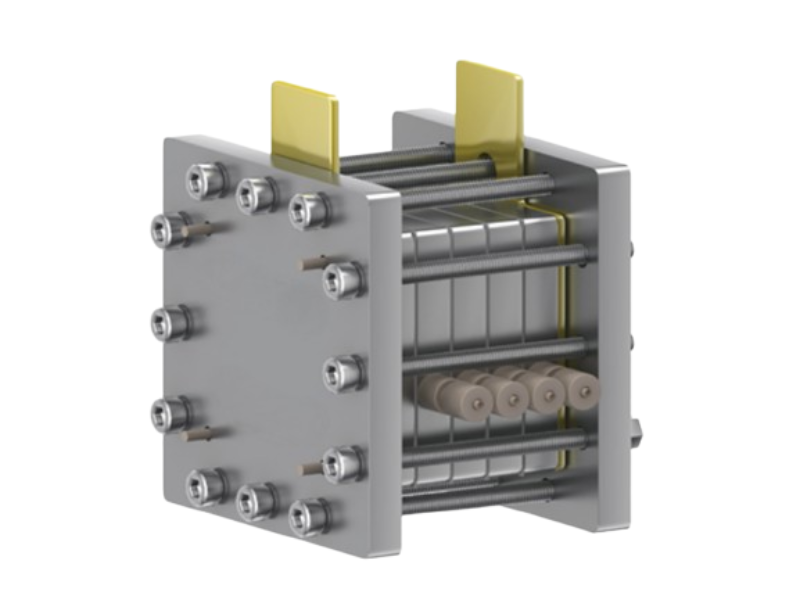

MEA cell
Description & Specification
| MEA Cell Stack Electrochemical Cell | |
| Model | Model:MEA-05 |
| Specification | The flow channel Specification: 10*10mm; 20*20mm; 5cm2; 30*30mm; 50*50mm, 50cm2 or other customized flow field size.
Cell material: High-purity titanium, or High-purity nickel plate. Terminal material: Gold-plated Copper |
| Feature | This electrolytic cell can achieve the higher voltage and power performance by stacking individual flow plates, it can be used for research-oriented testing of electrochemical processes such as carbon dioxide reduction, water electrolysis and organic electromechanical synthesis.

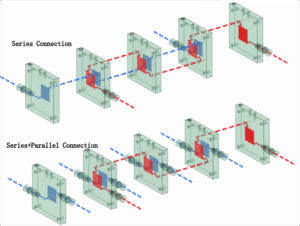

The channel plate of the cell body is made of high-purity titanium material, the other different materials such as high-purity nickel and PEEK can be customized according to customer needs. The runner board adopts hidden channels, it supports series connection, paralled connection, or series+parallel connection combinations. The MEA cell plate is equipped with heating and temperature measurement holes for electrochemical testing under temperature control conditions. The collector plate is made of gold-plated copper plate, which has strong corrosion resistance. The available reactor type: serpentine channel, parallel channel or leaf vein channel, the other customized channel types are also acceptable,such as spiral, mesh, comb, etc. |
