MEA Cell

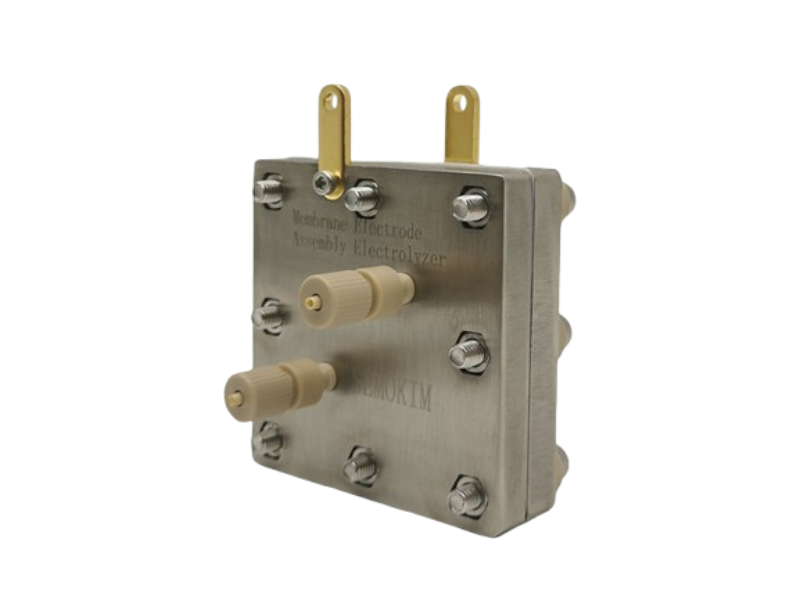

Titanium Bipolar-plate Membrane electrode Assemblies cell. MEA cell. Model:MEA-01. For proton-exchange membranes (PEM) or alkali anion exchange membrane (AAEM), catalyst,electrochemical carbon dioxide reduction(CO2RR), alkaline anion exchange membrane water electrolysis…
Description & Specification
| Bipolar-plate Membrane electrode Assemblies cell (MEA cell) | |
| Model | Model:MEA-01 |
| Specification | The flow channel Specification: 10*10mm; 20*20mm; 5cm2; 30*30mm; 50*50mm, 50cm2 or other customized flow field size.
Cell material: High-purity titanium, or High-purity nickel plate. Terminal material: Gold-plated Copper |
| Feature | This MEA cell is mainly used for research analysis of electrochemical carbon dioxide reduction(CO2RR), alkaline anion exchange membrane water electrolysis and electrochemical processes.

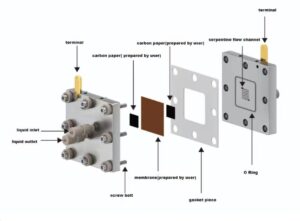

The MEA cell body is equipped with dual O-ring sealing grooves, it has excellent sealing performance. The bipolar plate is equipped with heating and temperature measurement holes for electrochemical testing under temperature control conditions. The overall material of the membrane electrode assembly cell body is high-purity titanium, and the user also can choose high-purity nickel plates which can be used for electrochemical testing in special environments. The reactor can be designed with the type of serpentine, parallel or leaf vein channel, we support also other customized channel types such as spiral, mesh, comb, etc. |
